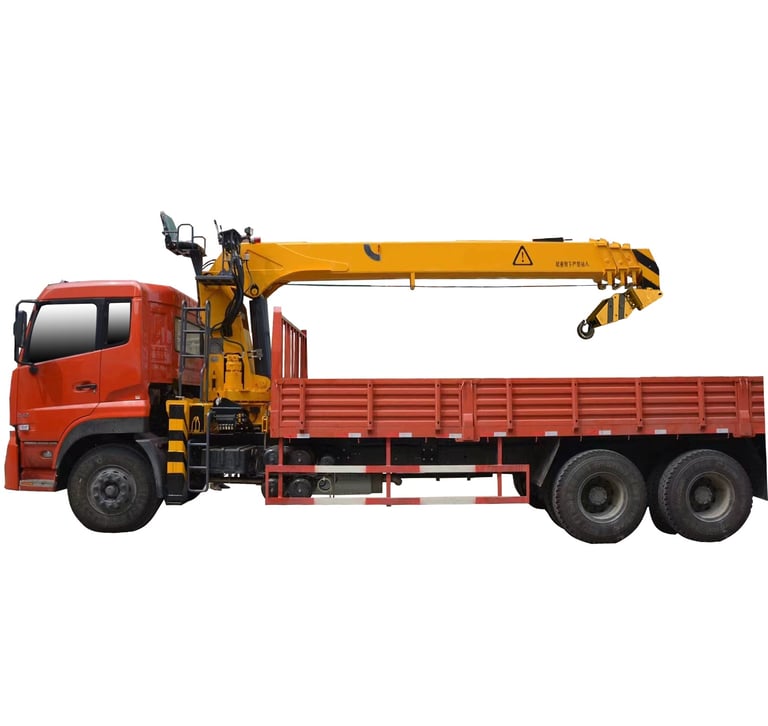

A 10 ton Telescopic Boom Truck Mounted Crane with 4 section arms on a white background.

10 Ton Telescopic Truck With Crane For Sale

The advantages of the 10 tonne crane are a maximum lifting moment of 25 ton.m, a maximum lifting capacity of 10 tonnes, a recommended power of 30 KW, a hydraulic system pressure of 28 MPa and a hydraulic system flow of 63 L/min. It requires 1250mm of space to set up and has a 360 degree continuous rotation angle.

GET A QUOTE

DOWNLOAD BROCHURE

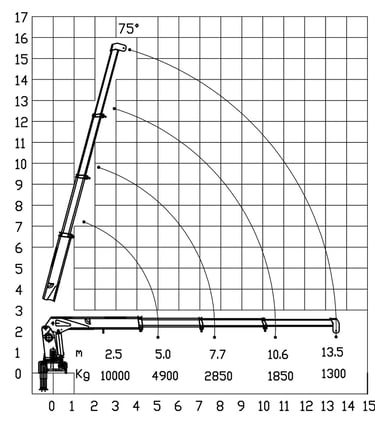

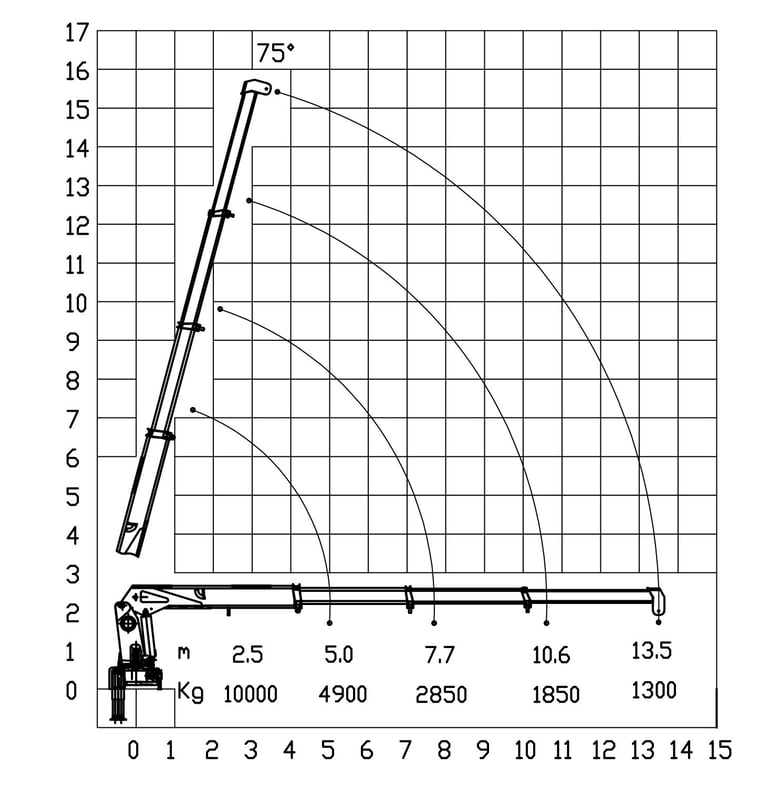

Diagram of a 10 ton telescopic boom crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS250A-4

10,000Kg

25 Ton.M

13.5 M

30 Kw

63 L/Min

28 Mpa

150 L

360°

3900 Kg

1250 MM

5400 MM

Why choose the 10 ton telescopic truck mounted crane?

One of the features that make the 10 tonne boom crane a best-seller is its telescopic arm and its flexibility to extend over large angles of rotation. The crane's unique features allow operators to work around obstacles, access confined spaces and reach greater heights. Think of tasks such as moving objects on construction sites or trees in forestry applications, whatever the application, efficiency is guaranteed.

The crane is designed to be mounted on trucks for easy access to sites at your convenience. The popularity of the mobile crane in various industries is due to its reliability in transport and installation.

GET A QUOTA
