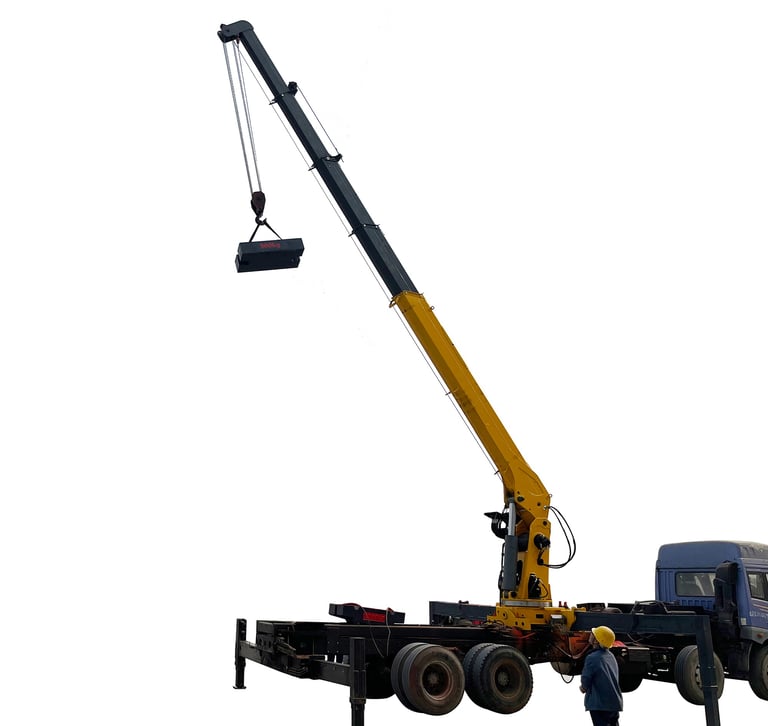

A man standing next to a 10 ton Telescopic Boom Truck Mounted Crane lifting a large object with 5 section arms.

10 Ton Truck Mounted Crane For Sale

The advantages of the 10 tonne crane are a maximum lifting moment of 25 ton.m, a maximum lifting capacity of 10 tonnes, max working radius 16.3m, a hydraulic system pressure of 28 MPa and a hydraulic system flow of 63 L/min. It requires 1250mm of space to set up and has a 360 degree continuous rotation angle.

GET A QUOTE

DOWNLOAD BROCHURE

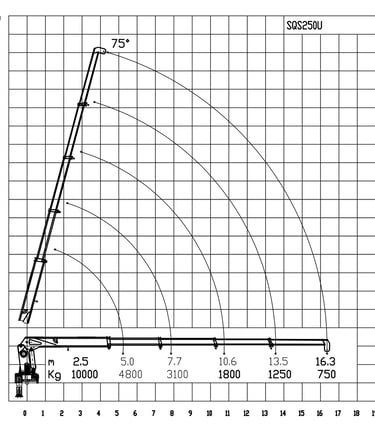

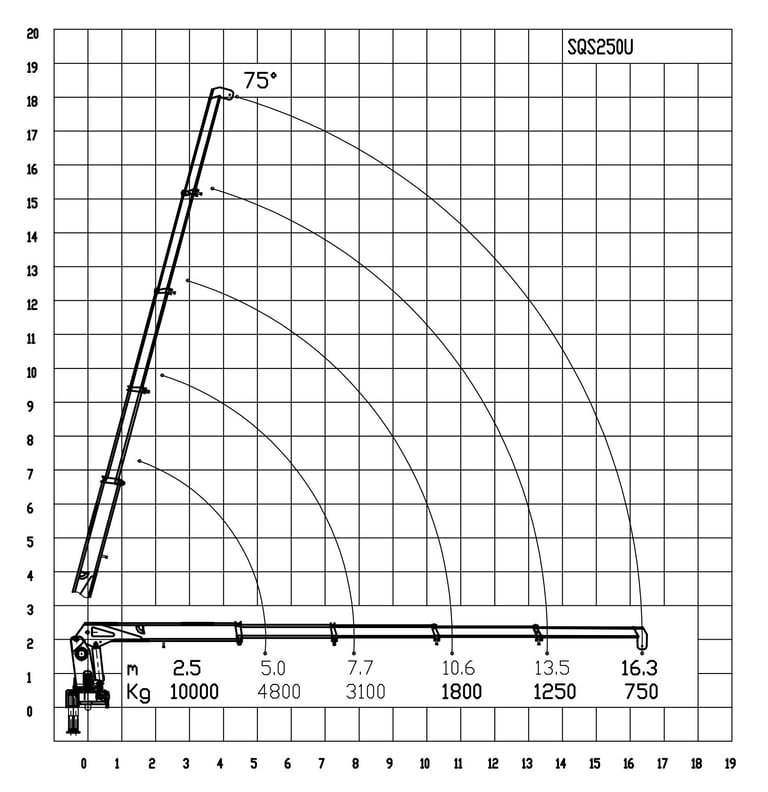

Schematic diagram of an 10 tonne telescopic boom crane with crane jib, working radius 16.3m, showing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS250U-5

10,000Kg

25 Ton.M

16.3 M

30 Kw

63 L/Min

28 Mpa

200 L

360°

4000 Kg

1300 MM

5700 MM

Why choose the 10 ton telescopic truck mounted crane?

There are several reasons why you should buy the 10 tonne telescopic truck crane. One reason is its maximum lifting capacity. The crane can lift up to 10 tonnes of material, which is quite effective. It also has an outreach of 16.3 metres, which makes it effective in areas that require machines that can cover a large area.

The machine also has integral slewing units and bearings that support the boom, turntable and other parts of the crane. It also has a symmetrical centre, which makes it more stable and effective. Finally, the crane has hydraulic locks and compensating valves for improved safety.
