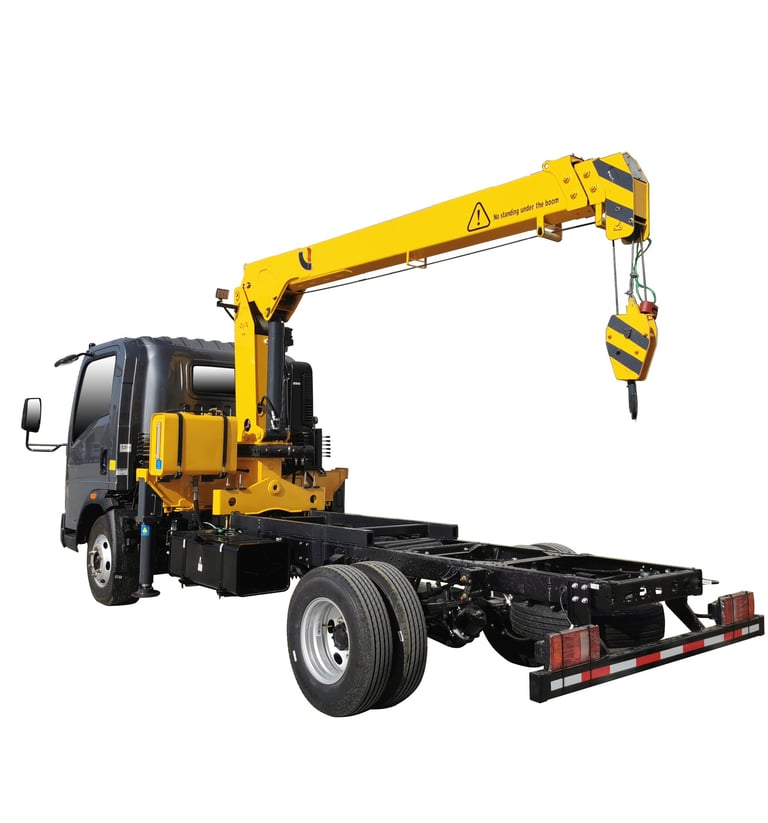

A 3.2 ton telescopic crane displayed on a white background.

3 Ton Telescopic Small Truck Mounted Crane

The 3.2 tonne telescopic boom truck crane has a maximum lifting capacity of 3.2 tonnes and a maximum lifting moment of 8 tonne metres. It also has a recommended power rating of 16 KW. A hydraulic system flow of 25 L/min and a hydraulic system pressure of 20 MPa. Finally, the crane requires only 780 mm of installation space and has a rotation angle of 360 degrees.

GET A QUOTE

DOWNLOAD BROCHURE

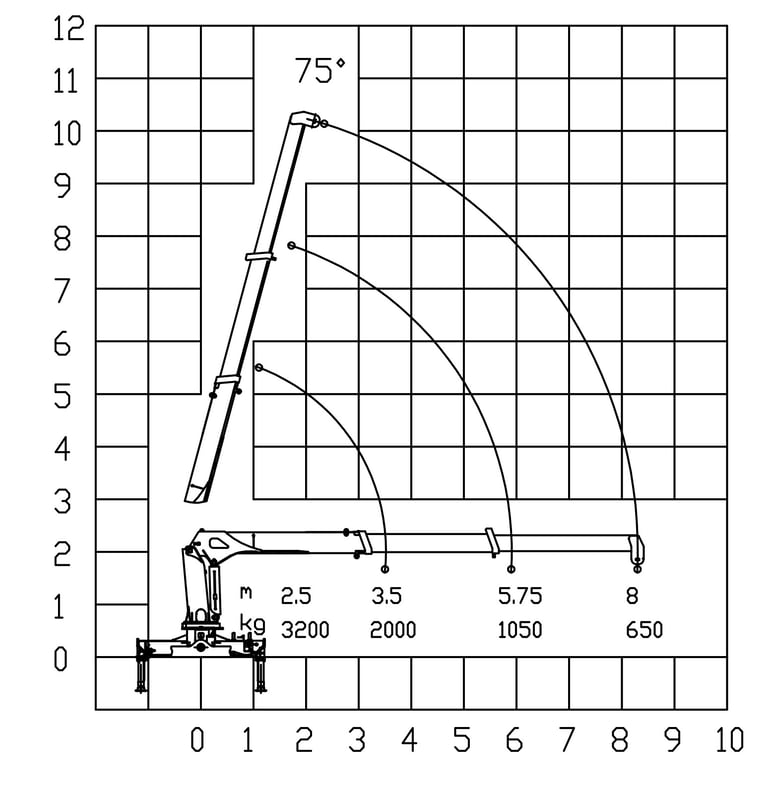

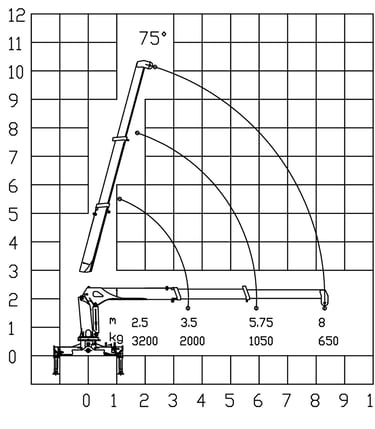

Diagram of a 3.2 ton telescopic boom crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS80A-3

3200 Kg

8 Ton.M

8 M

16 Kw

25 L/Min

20 Mpa

60 L

360°

1250 Kg

780 MM

2800 MM

Why choose the 3 ton telescopic Loader crane?

The 3 ton truck-mounted telescopic boom crane features a two-part telescopic cylinder design. This design includes one cylinder that pushes the boom while another cylinder drives the telescopic boom using a wire rope and pulley block. By using this design, the crane is able to generate lifting capacity while ensuring that the wire rope inside the boom is well protected.

In addition, this crane has a structure with a uniquely shaped boom, with pentagonal and hexagonal components. This configuration increases its ability to withstand collapse. To increase its strength, the boom of the 3.2 tonne telescopic boom truck mounted crane is constructed from steel plates to minimise susceptibility to collapse forces. It also relies on a hydraulic lifting mechanism supported by a friction brake and disc spring for stability.
