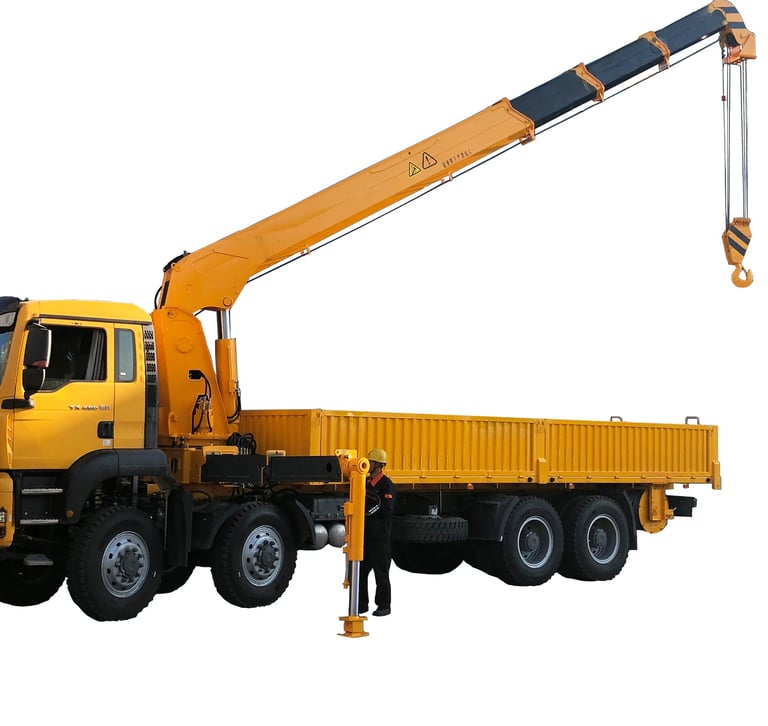

A crane hoists a 16-ton truck using a telescopic boom truck mounted crane with 5 section arms on a white background.
A crane hoists a 16-ton truck using a telescopic boom truck mounted crane with 5 section arms on a white background.

16 Ton Telescopic Boom Truck Mounted Crane

The 16 ton maximum lifting capacity, 42 ton.m maximum lifting moment, 40 KW recommended power,max working radius 19 m, 360 degree continuous rotation angle and 80+50 L/m hydraulic system flow are some of the features you can look forward to with the 16 ton telescopic boom truck mounted crane.

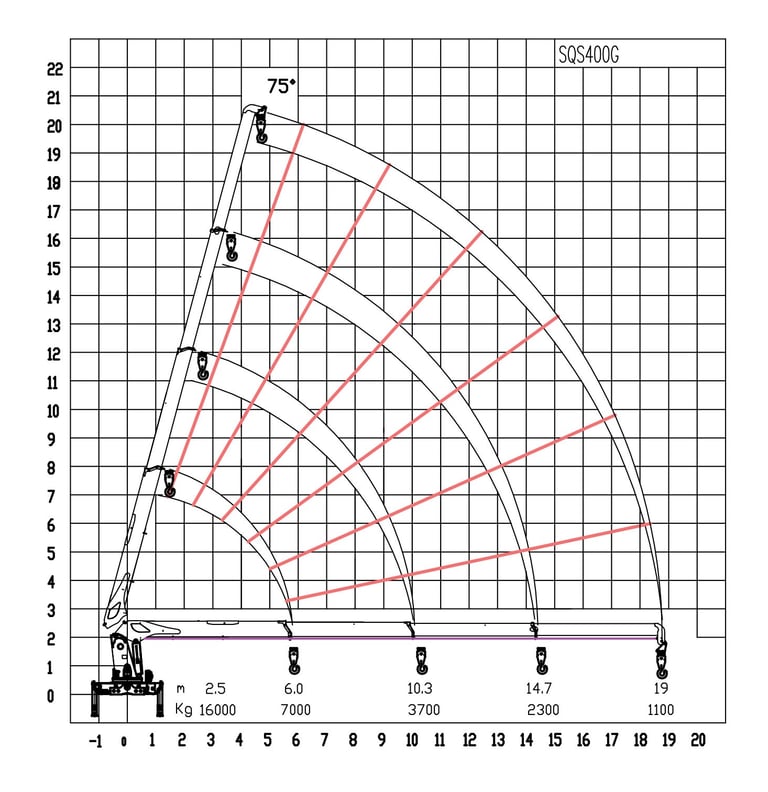

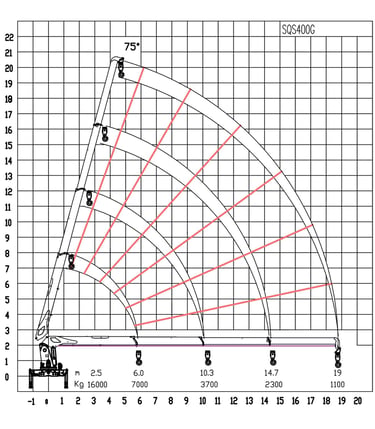

Schematic diagram of a 16 tonne telescopic boom crane with crane jib, working radius 19 m, showing its parameters.
Schematic diagram of a 16 tonne telescopic boom crane with crane jib, working radius 19 m, showing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS400G-4

16,000Kg

40 Ton.M

19 M

40 Kw

130 L/Min

28 Mpa

270 L

360°

6206 Kg

1320 MM

7408 MM

Why choose the 16 ton telescopic boom truck mounted crane ?

The 16 tonne telescopic boom truck-mounted crane has an integral hoist, which improves the efficiency of the crane and extends the life of the hydraulic system. It also has a tilting device and an integral slewing bearing that supports the upper part of the turntable while playing the slewing role.

The 16-tonne truck-mounted telescopic boom crane has a three-point bridge structure that improves the crane's functionality and square outriggers that protect the cylinder. It also has a pentagonal boom designed to prevent collapse when lifting heavy objects and a hydraulic lifting system based on efficient friction and disc spring brakes.

Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.
Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.
Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.
Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.
A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.
A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.
Truck's backside featuring steel plate and rear outriggers for crane support.
Truck's backside featuring steel plate and rear outriggers for crane support.
A black metal pliers with a handle, used as a truck-mounted crane Gripper.
A black metal pliers with a handle, used as a truck-mounted crane Gripper.
Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.
Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.

OPTIONALLY INSTALLED

Wireless Remote Control

Torque Limiter

Working Bucket

Rear Outriggers

Shell Grab

Gripper
