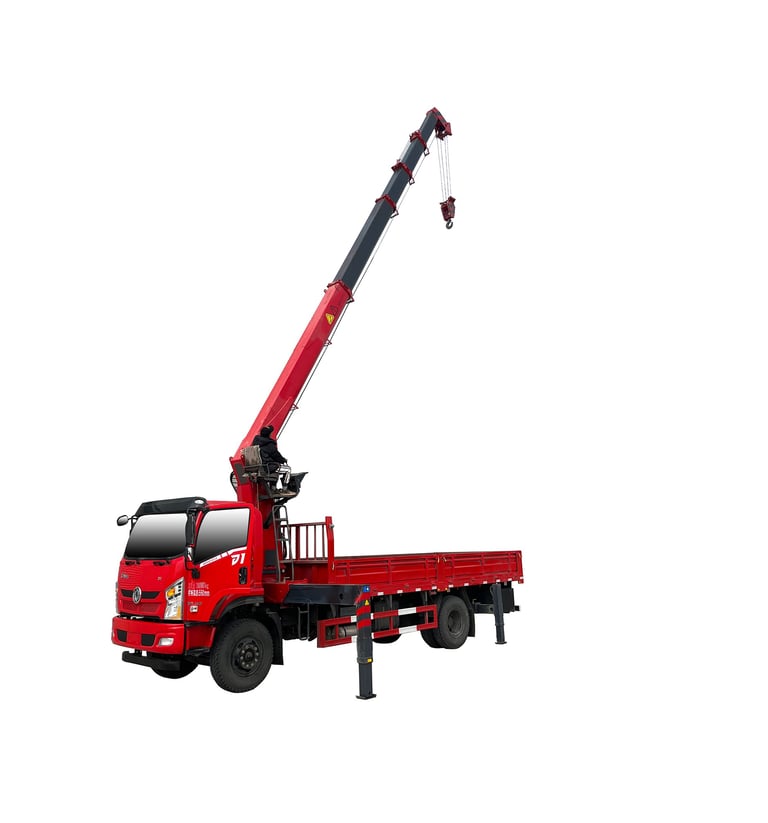

White background showcasing a red truck suspended by an 8 ton Telescopic Boom Truck Mounted Crane featuring 5 section arms.

8 Ton Telescopic Truck Crane

With a maximum lifting capacity of 8 tonnes, a maximum lifting moment of 20 tonnes per metre, a maximum working radius of 16.3 m and the ability to rotate continuously through 360°, the 8 tonne telescopic boom crane is ideal for demanding jobs that require durable equipment.

GET A QUOTE

DOWNLOAD BROCHURE

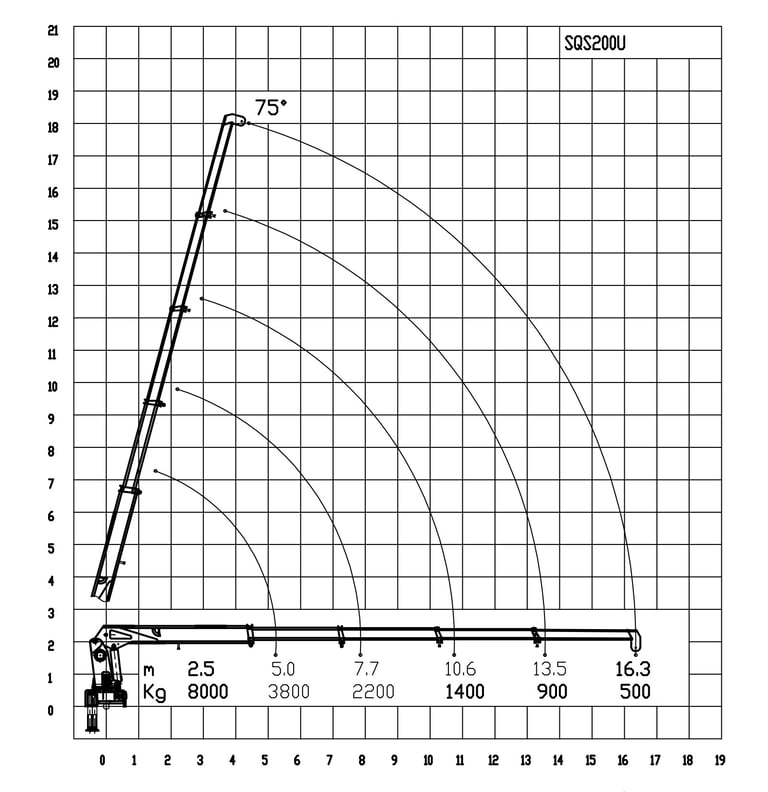

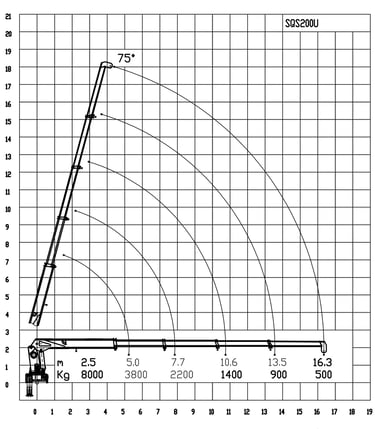

Schematic diagram of an 8 tonne telescopic boom crane with crane jib, working radius 16.3m, showing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS200U-4

8000 Kg

20 Ton.M

16.3 M

30 Kw

63 L/Min

24 Mpa

200 L

360°

3600 Kg

1250 MM

5400 MM

Why choose the 8 ton telescopic truck mounted crane?

There are several reasons why you should buy the 8 tonne telescopic truck crane. One reason is its maximum lifting capacity. The crane can lift up to 8 tonnes of material, which is quite effective. It also has an outreach of 16.3 metres, which makes it effective in areas that require machines that can cover a large area.

The machine also has integral slewing units and bearings that support the boom, turntable and other parts of the crane. It also has a symmetrical centre, which makes it more stable and effective. Finally, the crane has hydraulic locks and compensating valves for improved safety.
