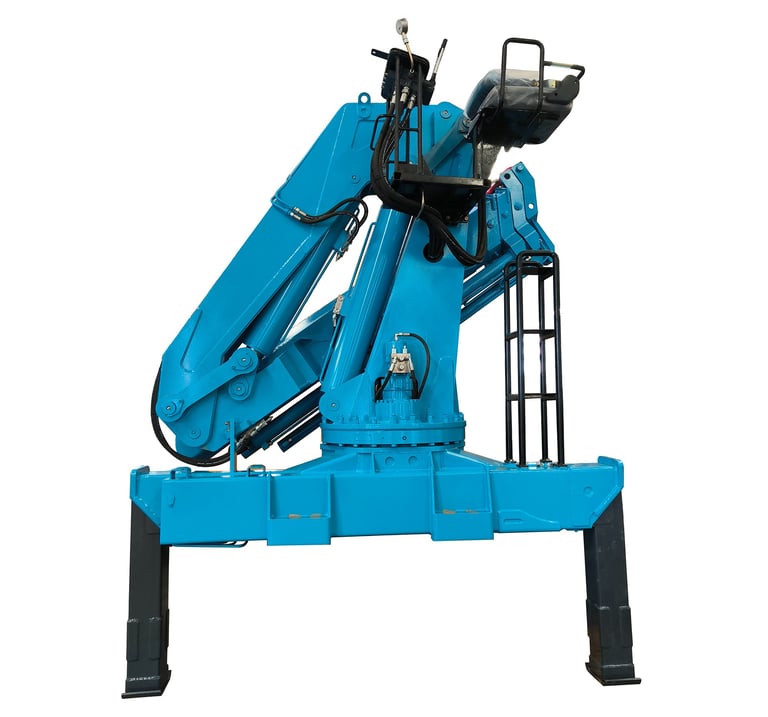

A blue hydraulic crane on a white background. 8 Ton Knuckle lorry mounted crane, designed with the latest analysis and techno

A blue hydraulic crane on a white background. 8 Ton Knuckle lorry mounted crane, designed with the latest analysis and techno

8 Ton Knuckle Lorry Mounted Crane

Our best-in-class knuckle boom crane for users needing perfect accuracy is the SQZ160A-3. Maximum lift capacity of 8000 kg and a 9.7-meter reach define this crane.

DOWNLOAD BROCHURE

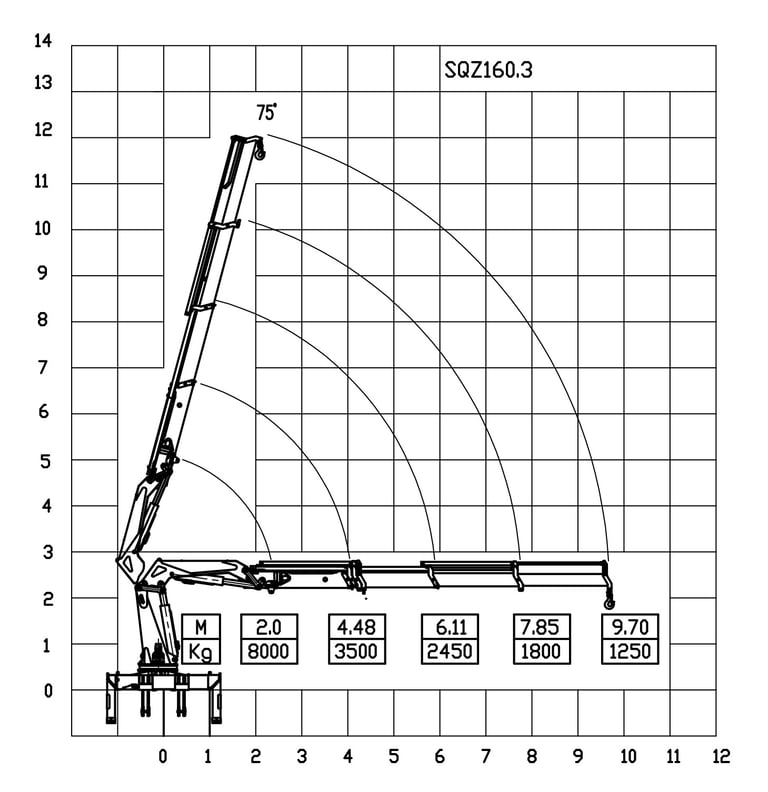

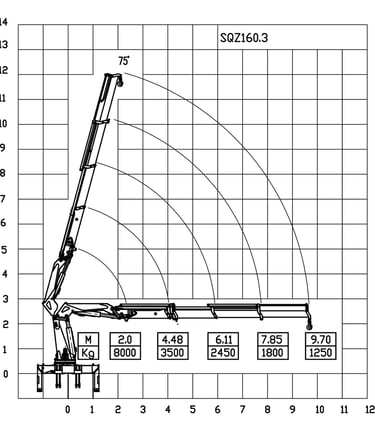

Diagram of a 8000kg 3-section telescopic boom knuckle crane with a crane arm, showcasing its parameters.

Diagram of a 8000kg 3-section telescopic boom knuckle crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQZ160A-3

8000 Kg

16 Ton.M

9.7 M

30 Kw

45 L/Min

28 Mpa

150 L

360°

2970 Kg

1200 MM

5230 MM

Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.

Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.

Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.

Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.

A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.

A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.

Truck's backside featuring steel plate and rear outriggers for crane support.

Truck's backside featuring steel plate and rear outriggers for crane support.

A black metal pliers with a handle, used as a truck-mounted crane Gripper.

A black metal pliers with a handle, used as a truck-mounted crane Gripper.

Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.

Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.

OPTIONALLY INSTALLED

Wireless Remote Control

Torque Limiter

Rear Outriggers

Shell Grab

Gripper

Working Bucket
