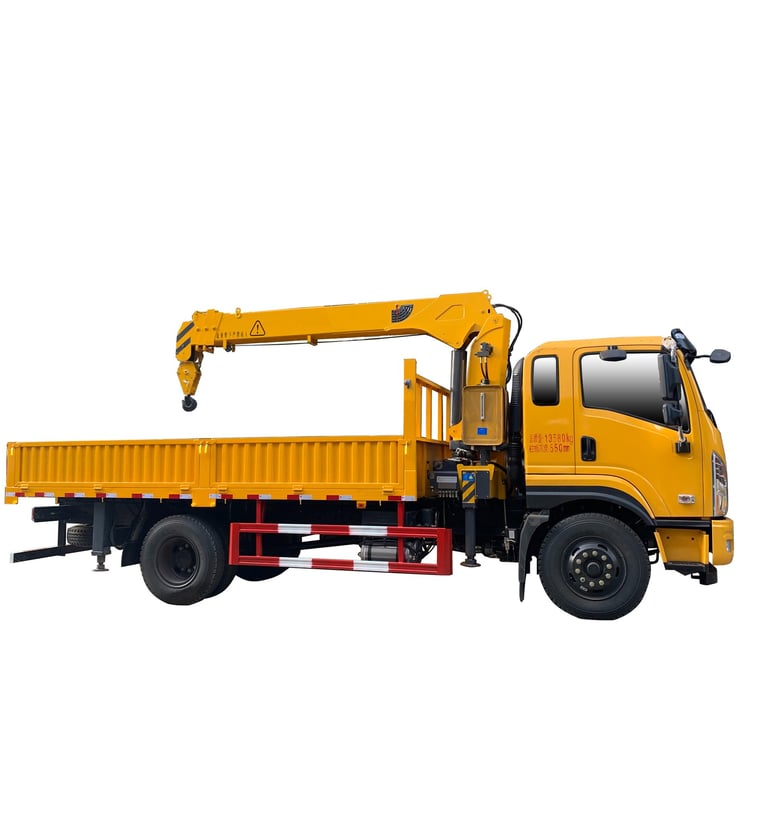

Yellow truck with 6.3 ton telescopic crane and 4 section arms.

6 Ton Telescopic Boom Truck-mounted Crane

The 6 ton telescopic boom truck mounted crane has a max lifting capacity of 6 tonnes and a maximum lifting moment of 15.75 tonne metres. It has a hydraulic system pressure of 20 MPa, requires an installation space of 900 mm and has a 360 degree continuous rotation angle.

GET A QUOTE

DOWNLOAD BROCHURE

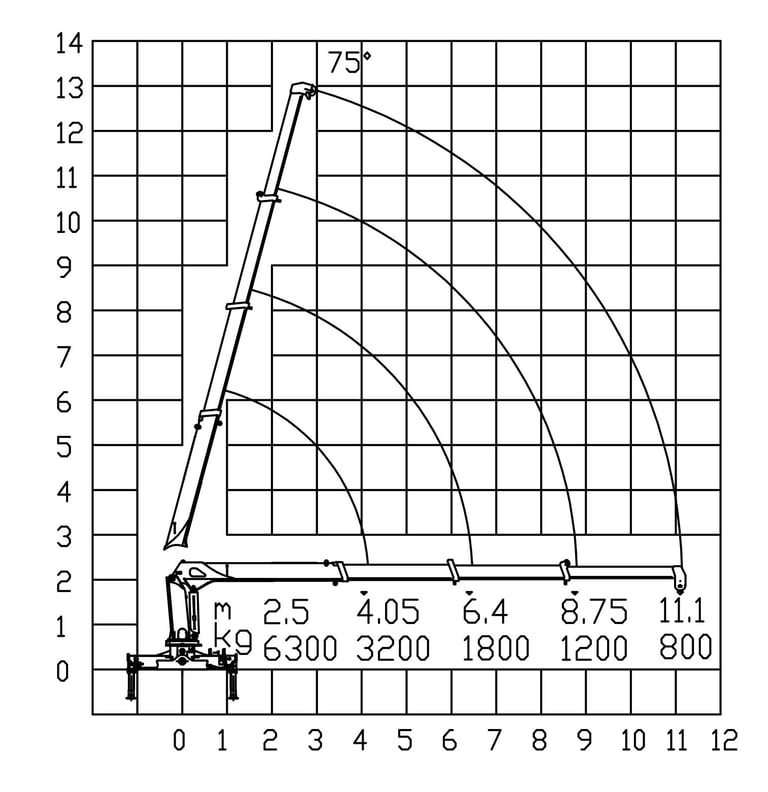

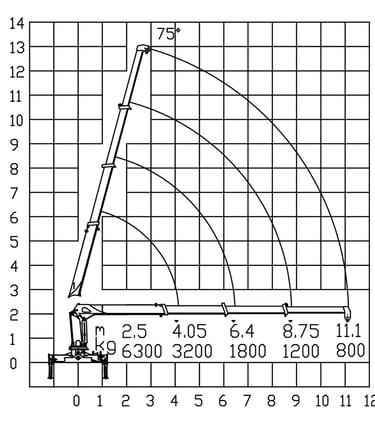

Diagram of a 6 ton telescopic boom crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS157A-4

6300 Kg

15.75 Ton.M

11.1 M

20 Kw

40 L/Min

20 Mpa

100 L

360°

2350 Kg

900 MM

5020 MM

Why choose the 6 ton telescopic truck mounted crane?

Firstly, the hydraulic truck crane has a two-part telescopic cylinder design, where one cylinder pushes the second large brush and the other pushes the telescopic brush through the wire rope and pulley block. This design provides high lifting capacity and protects the wire rope in the brush.

In addition, the crane has a symmetrical centre design with a hexagonal and pentagonal boom, which prevents it from collapsing. The jib interface is made of a strong steel plate, making it more resistant to collapse. Finally, the lifting mechanism is reliable, efficient and produces less noise when in use.
