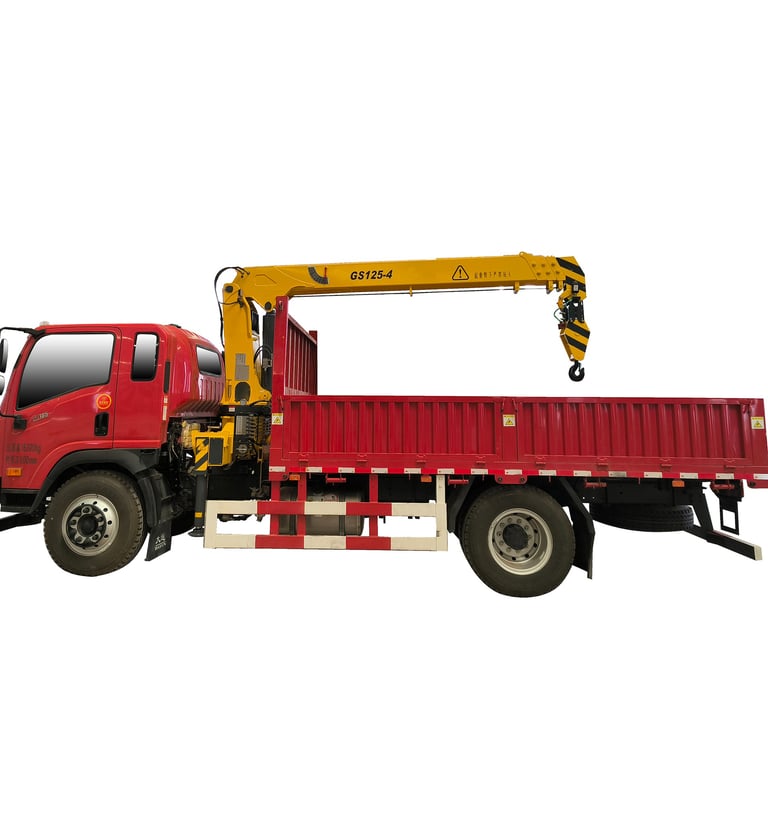

Red truck equipped with 5 ton telescopic crane and 4 section arms.

5 Ton Telescopic Truck-mounted Crane

The 5 ton telescopic boom truck mounted crane has a max lifting capacity of 5 tonnes and a maximum lifting moment of 12.5 tonne metres. It has a hydraulic system pressure of 20 MPa, requires an installation space of 900 mm and has a 360 degree continuous rotation angle.

GET A QUOTE

DOWNLOAD BROCHURE

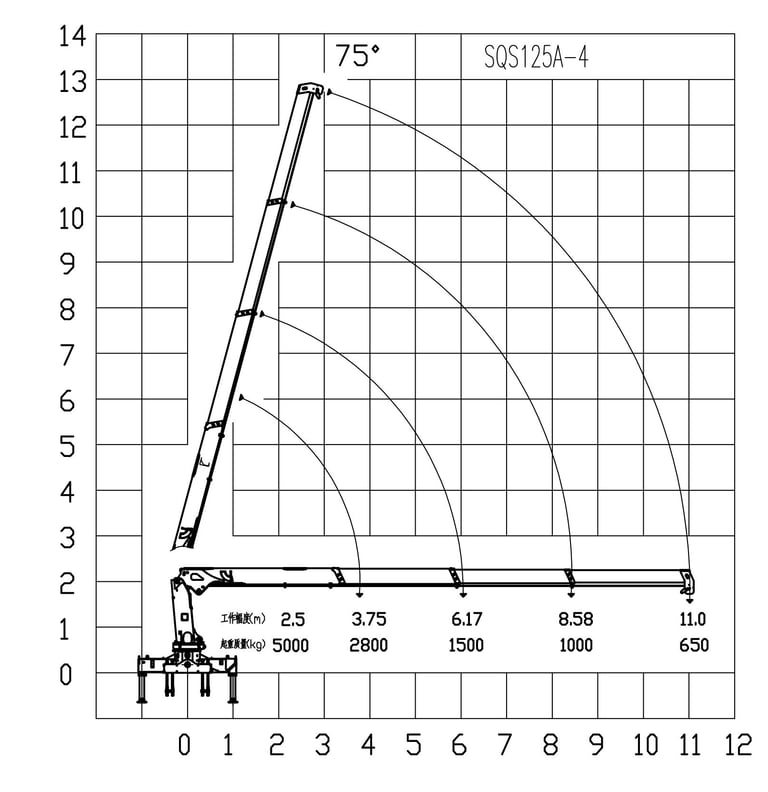

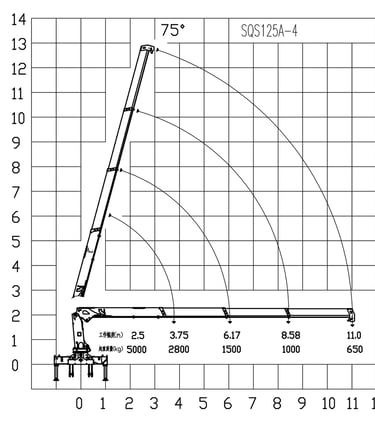

Diagram of a 5 ton telescopic boom crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS125A-4

5000 Kg

12.5 Ton.M

11 M

20 Kw

40 L/Min

20 Mpa

100 L

360°

2350 Kg

900 MM

5020 MM

Why choose the 5 ton telescopic truck mounted crane?

The 5 tonne telescopic boom truck crane features a balanced design, with a combination of pentagonal and hexagonal shapes in the centre to ensure stability under heavy loads. In addition, its boom is constructed from a steel plate for added strength. The crane also has legs that effectively absorb stress during operation, protecting the cylinder from any potential damage.

The crane is designed with a compact boom tail and head, which helps to extend the functionality of the system. It also uses the friction brake and disc spring to increase stability and efficiency. This design also ensures that noise levels are kept to a minimum during operation. It is also equipped with slewing impulse technology to enhance the safety of the vehicle.
