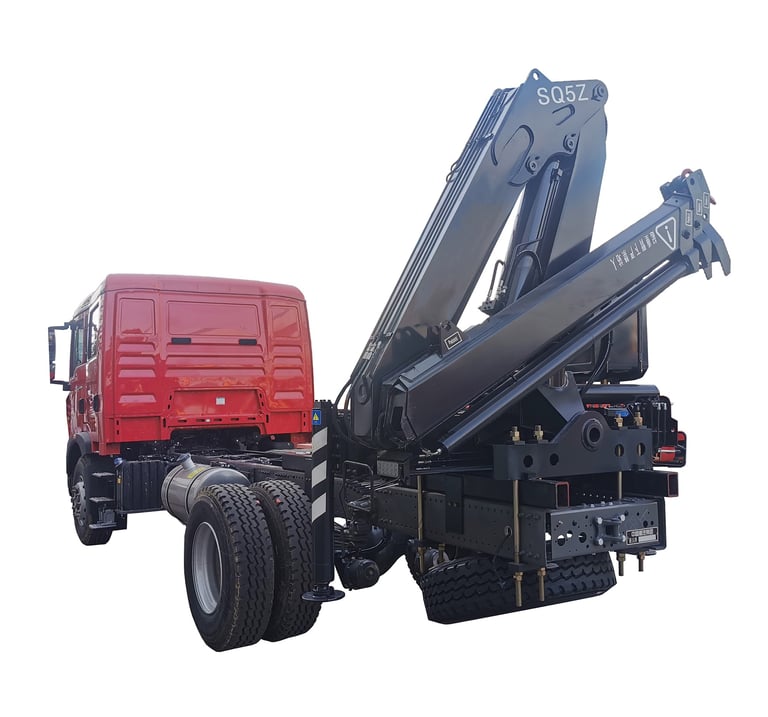

Image of a 5-ton knuckle boom truck mounted crane with a 10.5-ton lifting moment and 28 Mpa hydraulic pressure.

Image of a 5-ton knuckle boom truck mounted crane with a 10.5-ton lifting moment and 28 Mpa hydraulic pressure.

5 Ton Folding Boom Crane

Our best-in-class knuckle boom crane for users needing perfect accuracy is the SQZ105A-3. Maximum lift capacity of 5000 kg and a 10-meter reach define this crane.

DOWNLOAD BROCHURE

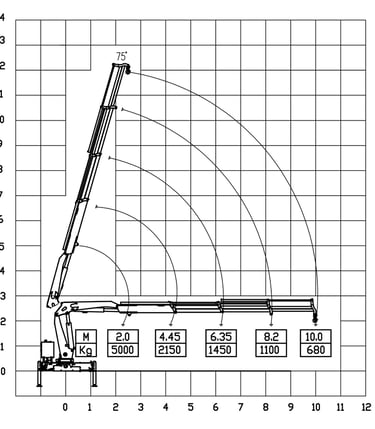

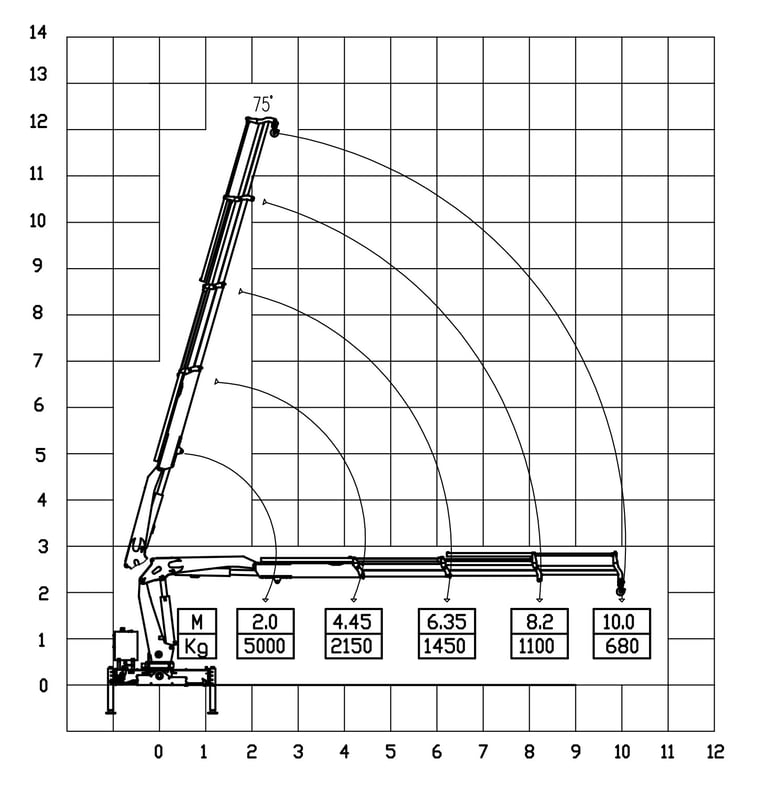

Diagram of a 5000kg knuckle boom crane with a crane arm, showcasing its parameters.

Diagram of a 5000kg knuckle boom crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQZ105A-3

5000 Kg

10 Ton.M

10 M

20 Kw

40 L/Min

28 Mpa

100 L

400°

2050 Kg

1070 MM

5144 MM

Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.

Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.

Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.

Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.

A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.

A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.

Truck's backside featuring steel plate and rear outriggers for crane support.

Truck's backside featuring steel plate and rear outriggers for crane support.

A black metal pliers with a handle, used as a truck-mounted crane Gripper.

A black metal pliers with a handle, used as a truck-mounted crane Gripper.

Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.

Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.

OPTIONALLY INSTALLED

Wireless Remote Control

Torque Limiter

Working Bucket

Rear Outriggers

Shell Grab

Gripper

RELATED PRODUCTS

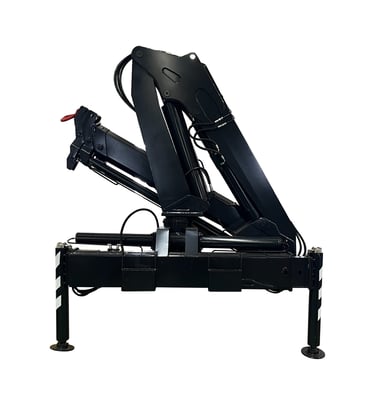

Hydraulic arm on black crane, 6.3 Ton Knuckle Boom Crane, 6300 kg lift capacity, 8.2-meter reach.

Hydraulic arm on black crane, 6.3 Ton Knuckle Boom Crane, 6300 kg lift capacity, 8.2-meter reach.

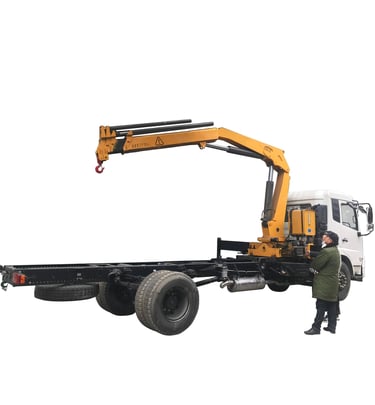

A man stands beside a robust crane with a 6.3 Ton Knuckle Boom. The crane's hexagon and pentagon boom design ensures stabilit
