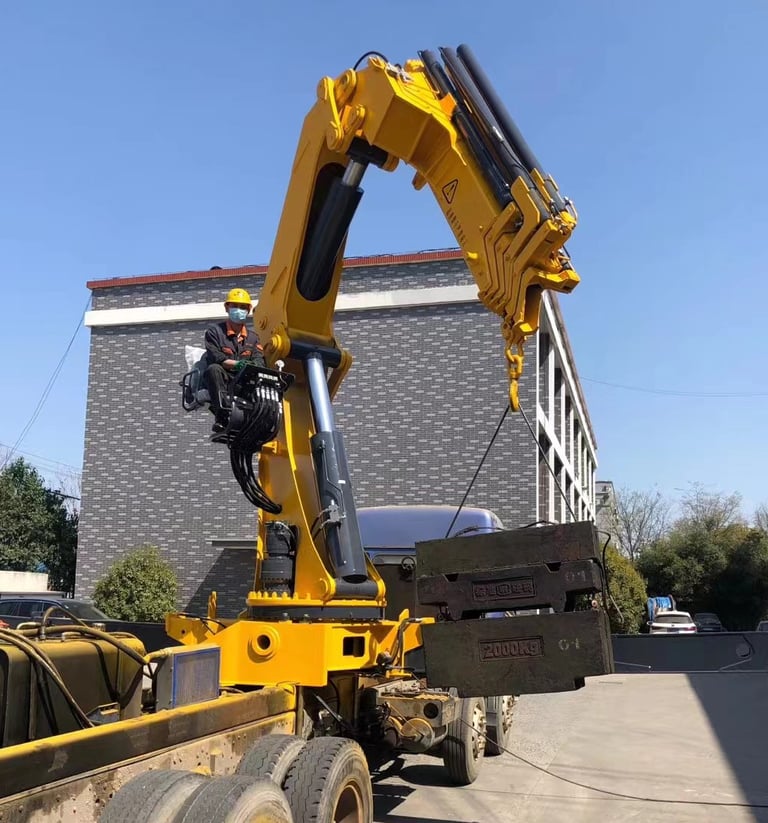

A large object being raised by a crane, specifically a 25 Ton Knuckle Loader Crane.

A large object being raised by a crane, specifically a 25 Ton Knuckle Loader Crane.

25 Ton Knuckle Loader Crane

Our best-in-class knuckle boom crane for users needing perfect accuracy is the SQZ600A-6. Maximum lift capacity of 25,000 kg and a 15.3-meter reach define this crane.

DOWNLOAD BROCHURE

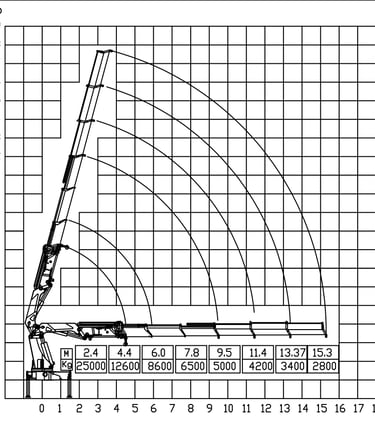

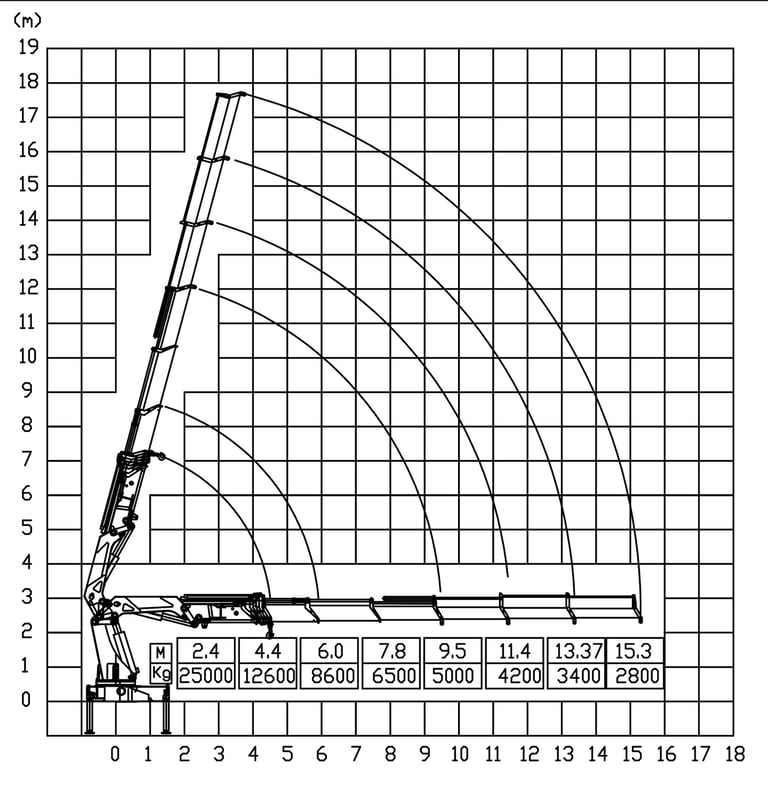

Diagram of a 25 Ton Knuckle Loader Crane with a crane arm, showcasing its parameters.

Diagram of a 25 Ton Knuckle Loader Crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQZ600A-6

25,000 Kg

60 Ton.M

15.3 M

45 Kw

80 L/Min

32 Mpa

280 L

360°

7800 Kg

1610 MM

7840 MM

Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.

Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.

Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.

Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.

A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.

A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.

Truck's backside featuring steel plate and rear outriggers for crane support.

Truck's backside featuring steel plate and rear outriggers for crane support.

A black metal pliers with a handle, used as a truck-mounted crane Gripper.

A black metal pliers with a handle, used as a truck-mounted crane Gripper.

Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.

Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.

OPTIONALLY INSTALLED

Wireless Remote Control

Torque Limiter

Working Bucket

Rear Outriggers

Shell Grab

Gripper

RELATED PRODUCTS

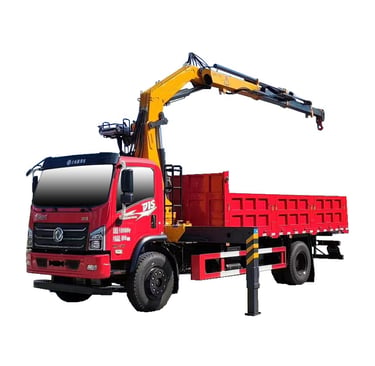

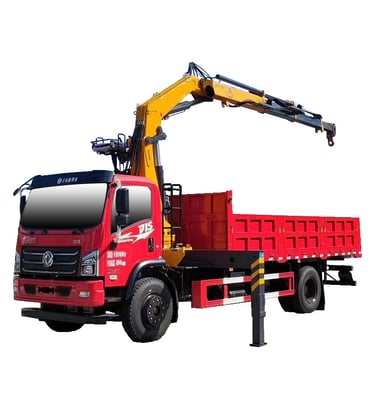

A white background showcases a 12 Ton Knuckle Loader Crane. Its standout feature is the articulating arm resembling a knuckle
