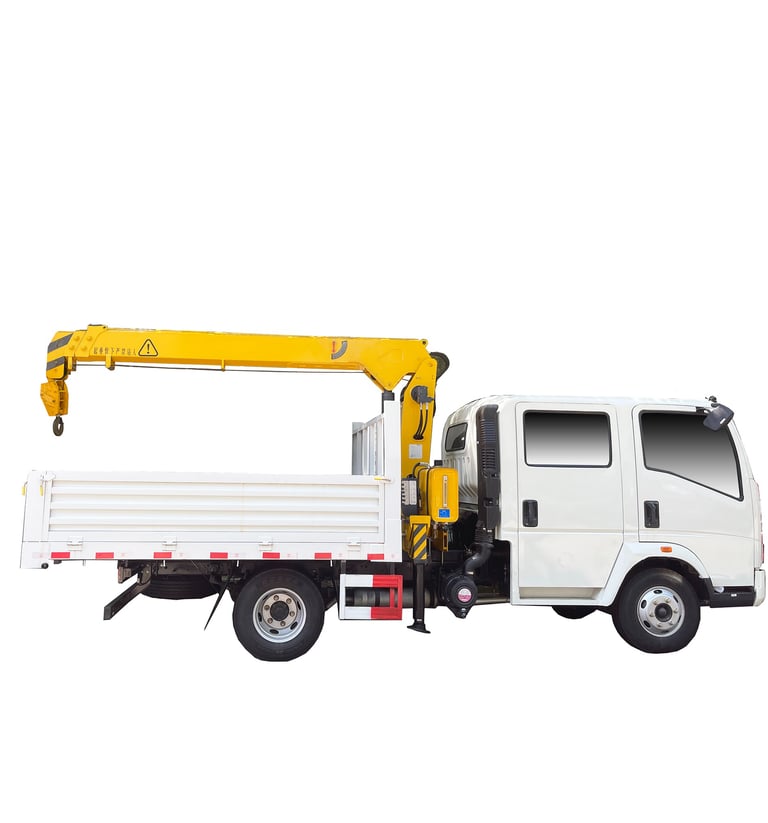

A white truck featuring a 2.1 ton telescopic crane mounted on top for heavy lifting purposes.

2 Ton Telescopic Loader Crane

The 2 ton telescopic boom truck mounted crane has a maximum lifting capacity of 2.1 tons, a maximum lifting moment of 4.2 tm and a recommended power of 9 kW. It has a hydraulic system flow rate of 20 L/min, a hydraulic system pressure of 16 MPa and a tank capacity of 60 L The installation space is 800 mm and the swivel angle is 360 degrees.

GET A QUOTE

DOWNLOAD BROCHURE

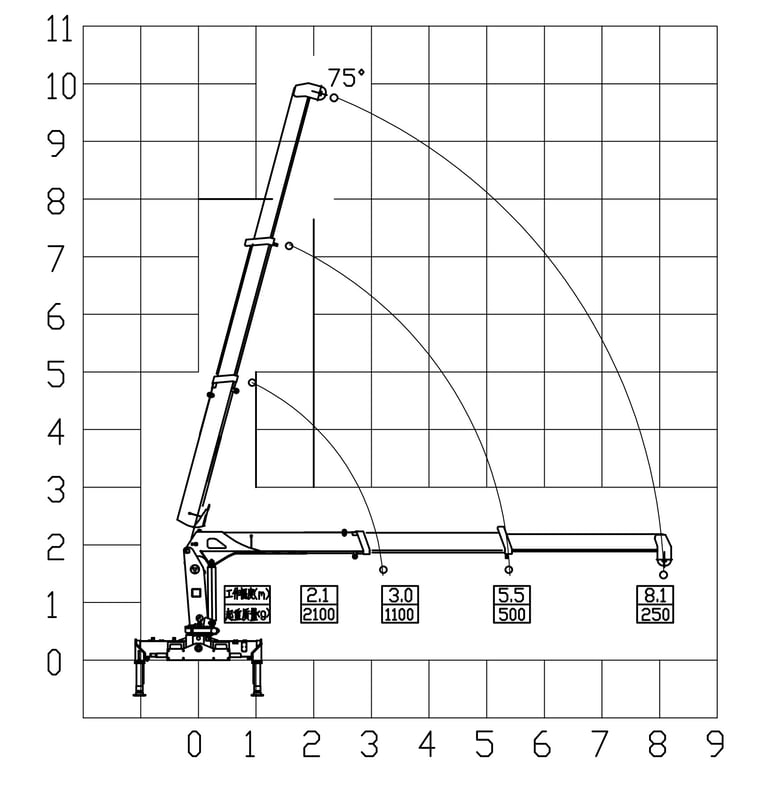

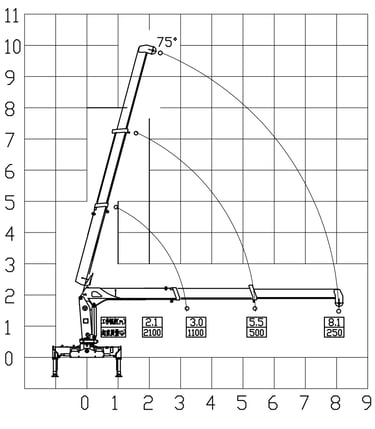

Diagram of a 2 ton telescopic boom crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS42A-3

2100 Kg

4.2 Ton.M

8.1 M

9 Kw

20 L/Min

16 Mpa

60 L

360°

900Kg

800 MM

3024 MM

Why choose the 2 tonne telescopic boom truck mounted crane?

The 2 Ton Telescopic Boom Truck Mounted Crane has a design that consists of a two section telescopic cylinder. This design does not increase its lifting capacity. Safety is also a priority. The crane has a hexagonal and pentagonal structure that contributes to its stability and provides additional resistance to bending forces.

In addition, the boom interface of the 2 ton telescopic boom truck mounted crane is reinforced with a steel plate to ensure durability, while its square legs provide protection for the cylinder. In addition, the compact head and tail design allows the boom to reach its full length efficiently, extending the life of the system.
