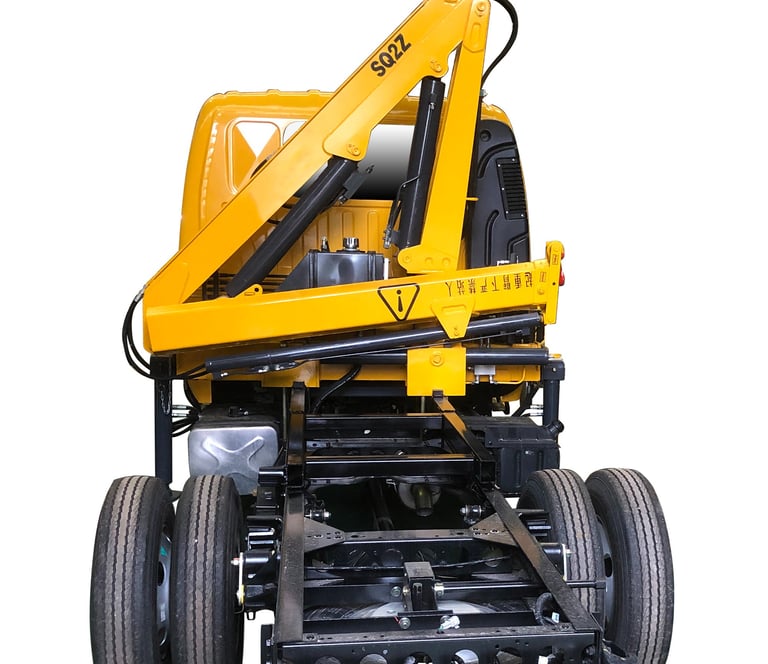

Yellow truck with 2 Ton Knuckle Boom Crane attached, capable of lifting 2,000 kg with a 5.1-meter reach.

Yellow truck with 2 Ton Knuckle Boom Crane attached, capable of lifting 2,000 kg with a 5.1-meter reach.

2 Ton Knuckle Boom Crane

Our best-in-class knuckle boom crane for users needing perfect accuracy is the SQZ40A-1. Maximum lift capacity of 2,000 kg and a 5.1-meter reach define this crane.

DOWNLOAD BROCHURE

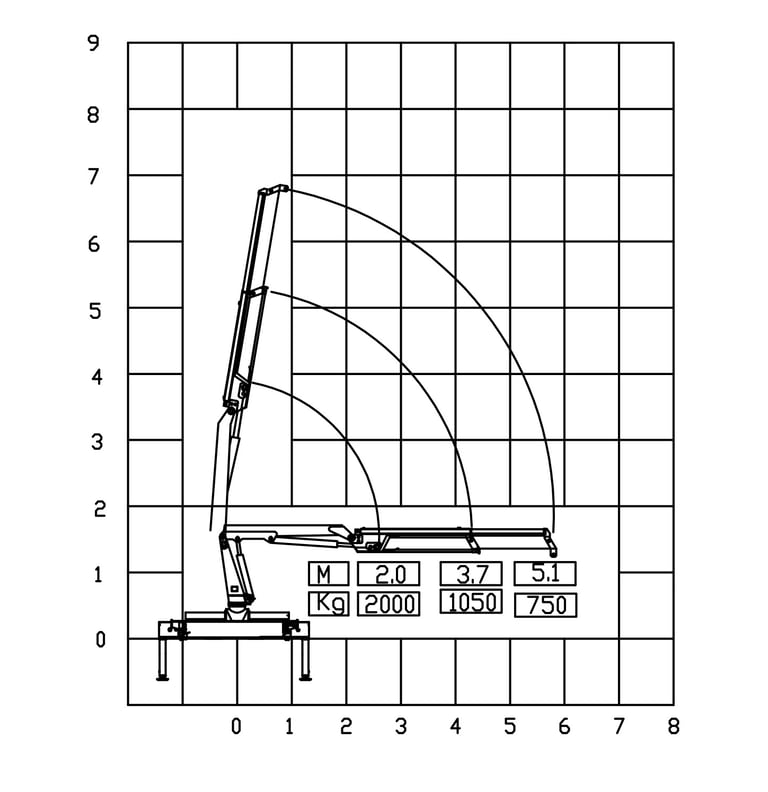

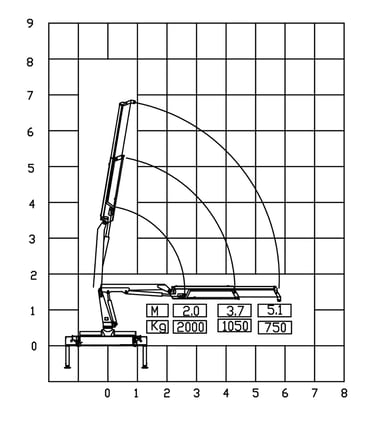

Diagram of a 2 ton knuckle boom crane with a crane arm, showcasing its parameters.

Diagram of a 2 ton knuckle boom crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQZ40A-1

2000 Kg

4 Ton.M

5.1 M

8 Kw

20 L/Min

22 Mpa

30 L

400°

750 Kg

800 MM

3000 MM

Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.

Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.

Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.

Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.

A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.

A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.

Truck's backside featuring steel plate and rear outriggers for crane support.

Truck's backside featuring steel plate and rear outriggers for crane support.

A black metal pliers with a handle, used as a truck-mounted crane Gripper.

A black metal pliers with a handle, used as a truck-mounted crane Gripper.

Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.

Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.

OPTIONALLY INSTALLED

Wireless Remote Control

Torque Limiter

Working Bucket

Rear Outriggers

Shell Grab

Gripper

RELATED PRODUCTS

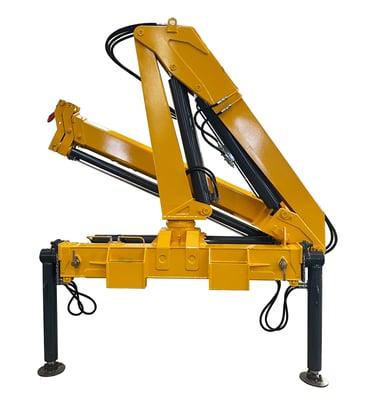

3.2 Ton Knuckle Boom Crane in yellow, with hydraulic arm, 3200 kg lift capacity, 7.5-meter reach.

3.2 Ton Knuckle Boom Crane in yellow, with hydraulic arm, 3200 kg lift capacity, 7.5-meter reach.

A black hydraulic lift on a white background. 4 Ton Knuckle Boom Crane, SQZ84A-2, with a 4000 kg lift capacity and 7.5-meter

A black hydraulic lift on a white background. 4 Ton Knuckle Boom Crane, SQZ84A-2, with a 4000 kg lift capacity and 7.5-meter

Image of a 5-ton knuckle boom truck mounted crane with a 10.5-ton lifting moment and 28 Mpa hydraulic pressure.

Image of a 5-ton knuckle boom truck mounted crane with a 10.5-ton lifting moment and 28 Mpa hydraulic pressure.

SQZ20A-2 （1.5 Ton）

SQZ68A-2（3.2 Ton）

SQZ84A-2（4 Ton）

SQZ105A-3（5 Ton）
