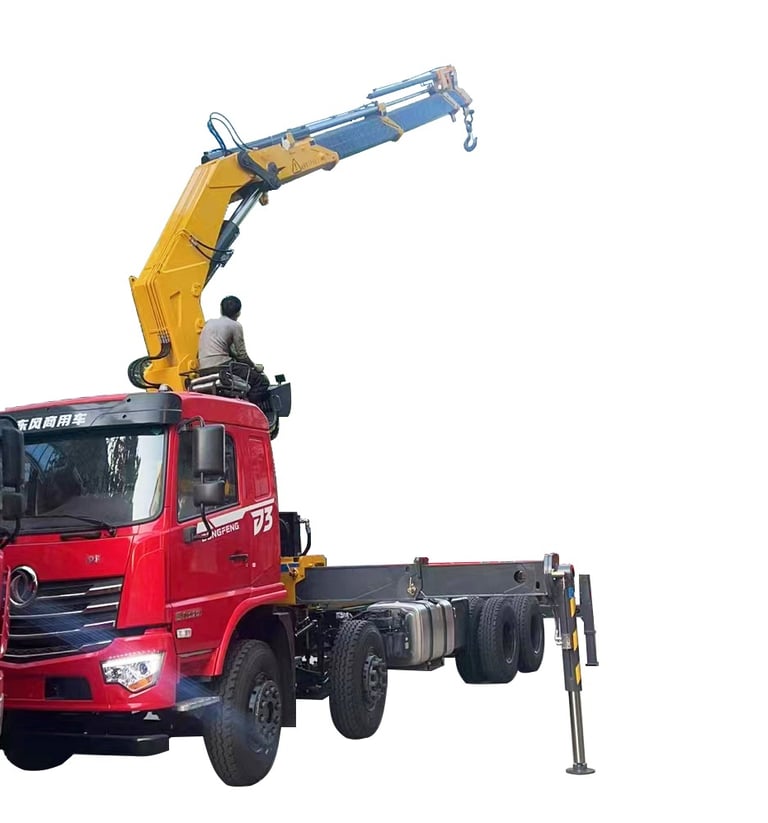

16 Ton Knuckle Lorry Loader Crane

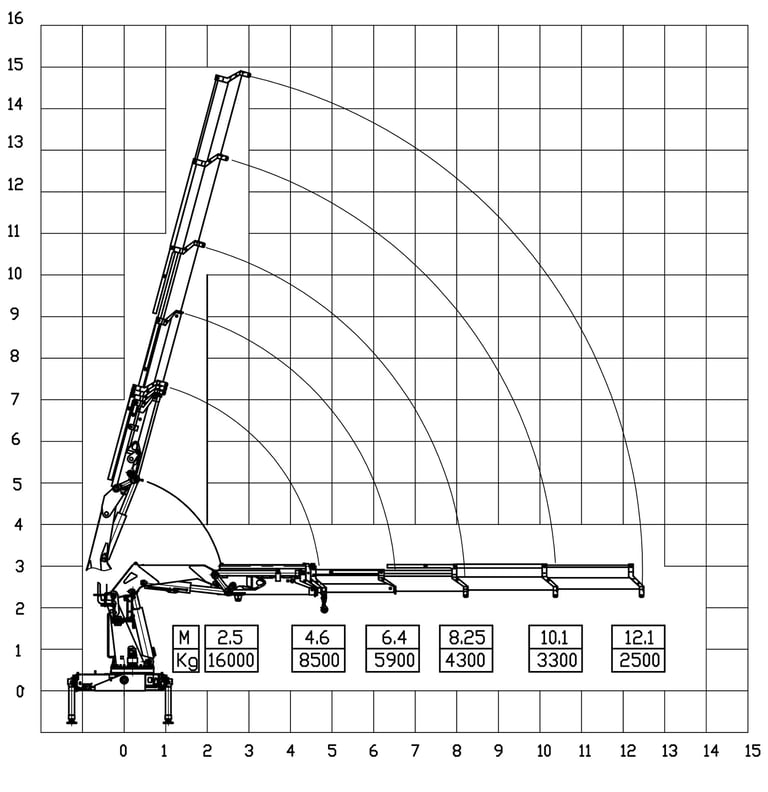

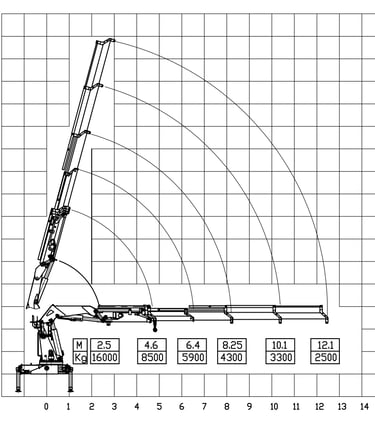

Our best-in-class knuckle boom crane for users needing perfect accuracy is the SQZ400A-4. Maximum lift capacity of 16,000 kg and a 12.1-meter reach define this crane.


PRODUCT VARIANTS
Model:
Max.Lifting Weight:
Max.Lifting Moment:
Max.Working Radius:
Recommend Power:
Hydraulic System Flow:
Hydraulic System Pressure:
Oil Tank Capacity:
Rotation Angle:
Crane Self Weight:
Installation space:
Outtrigger Span:
SQZ400A-4
16,000 Kg
40 Ton.M
12.1 M
40 Kw
63 L/Min
30 Mpa
250 L
360°
5950 Kg
1700 MM
7203 MM












OPTIONALLY INSTALLED
Wireless Remote Control
Torque Limiter
Working Bucket
Rear Outriggers
Shell Grab
Gripper
