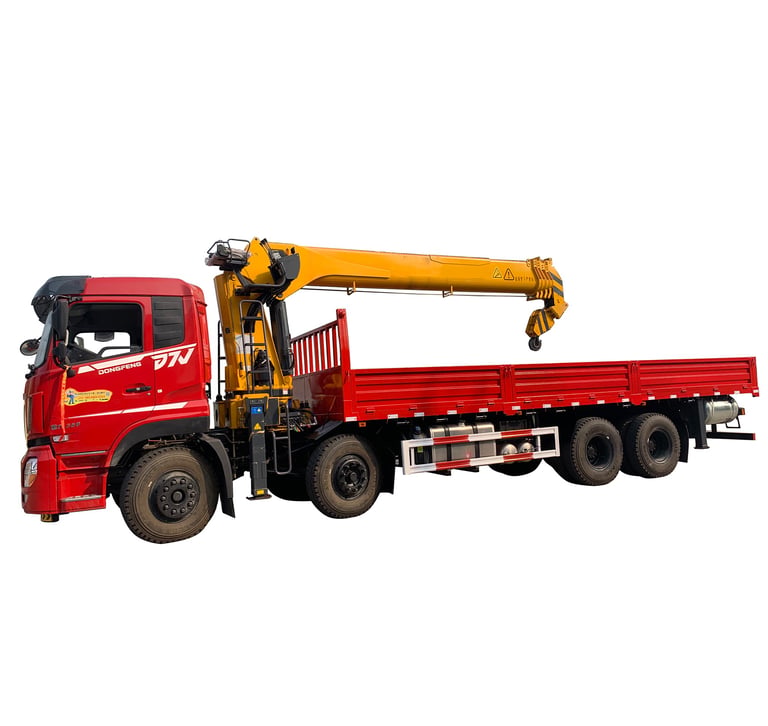

a crane truck is displayed featuring a 14-ton telescopic boom, 5 section arms, and a U-style boom.

14 Ton Telescopic Boom Truck Crane

The 14 ton maximum lifting capacity, 35 ton.m maximum lifting moment, 40 KW recommended power,max working radius 18.6 m, 360 degree continuous rotation angle and 80 L/m hydraulic system flow are some of the features you can look forward to with the 14 ton telescopic hydraulic truck crane.

GET A QUOTE

DOWNLOAD BROCHURE

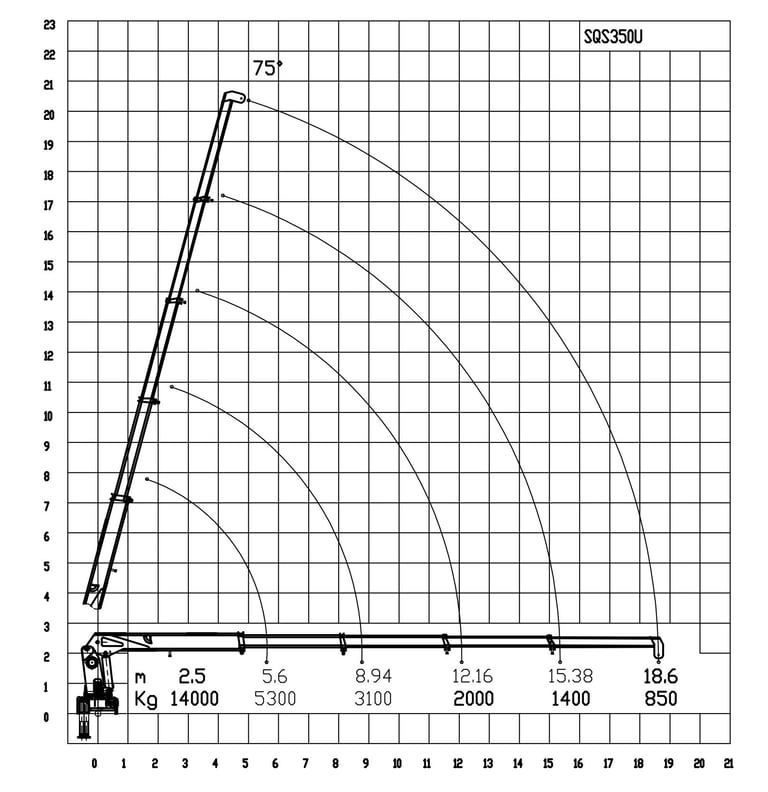

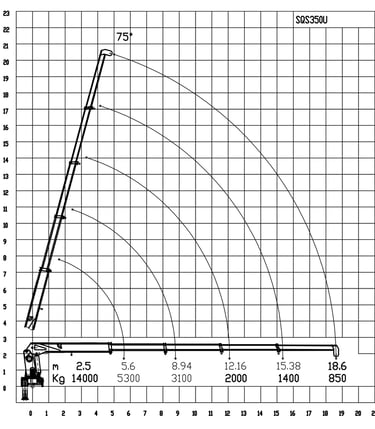

Diagram of a 14 ton telescopic boom crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS350U-5

14,000Kg

35 Ton.M

18.6 M

40 Kw

80 L/Min

28 Mpa

200 L

360°

5200 Kg

1300 MM

7185 MM

Why choose the 14 ton telescopic boom truck mounted crane ?

The 14 tonne telescopic boom truck mounted crane is stable in performance. Its structure is similar to a pentagon and hexagon, ensuring that heavy loads will not collapse during operation. The crane has a steel plate that enhances protection and provides flexural strength.

It is equipped with a hoist, which improves operating efficiency and increases its service life. The crane has disc springs and friction brakes, which provide solid stability and reliability during lifting or moving projects. The friction brakes improve efficiency and eliminate high noise levels. This provides a more comfortable working environment. The slewing device allows the operator to manoeuvre the truck easily.
