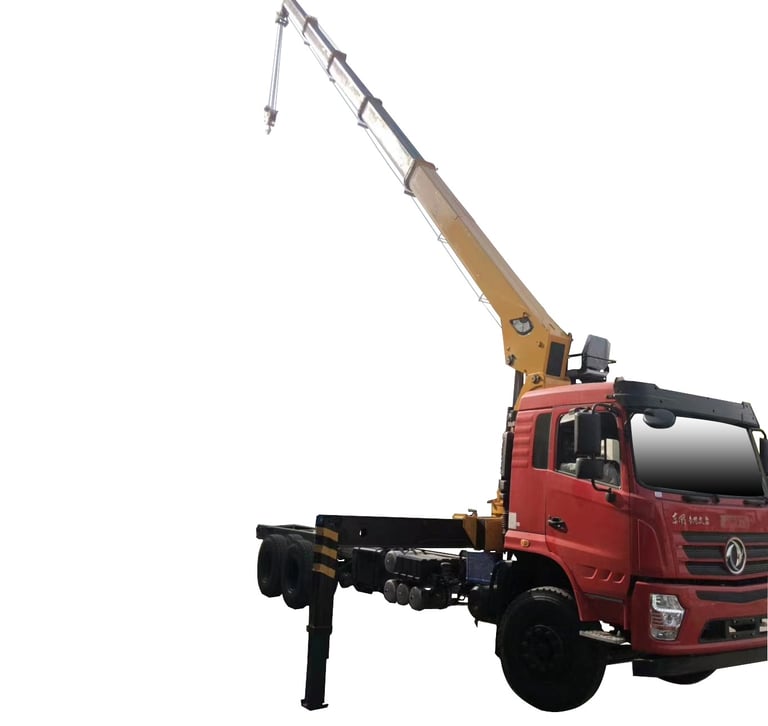

Image of a truck being lifted by a 12-ton Telescopic Boom Truck Mounted Crane with 5 section arms

12 Ton Telescopic Hydraulic Truck Crane

The 12 ton maximum lifting capacity, 30 ton.m maximum lifting moment, 30 KW recommended power,max working radius 17.5 m, 360 degree continuous rotation angle and 63 L/m hydraulic system flow are some of the features you can look forward to with the 12 ton telescopic boom loader crane..

GET A QUOTE

DOWNLOAD BROCHURE

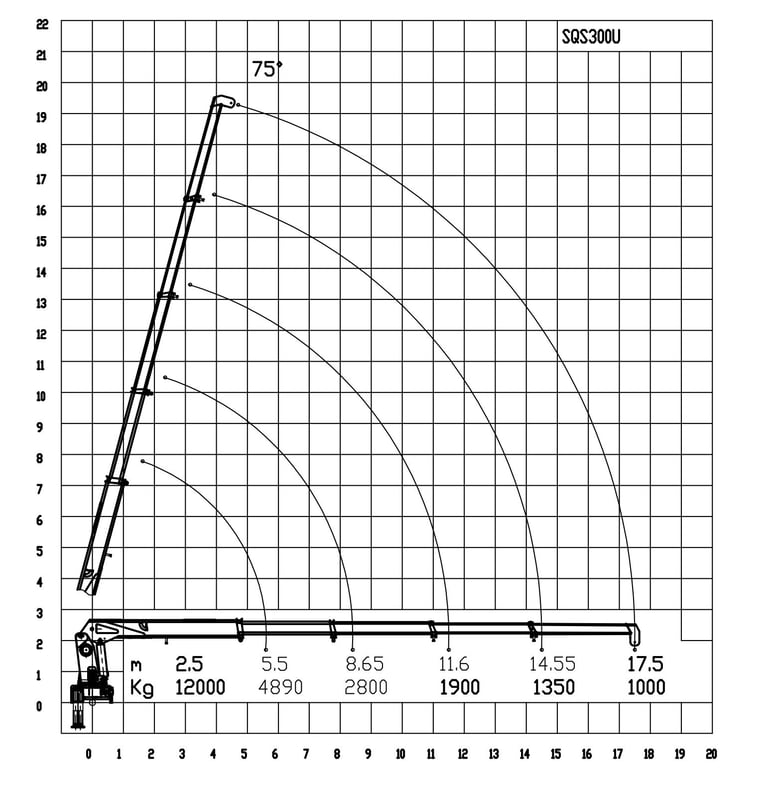

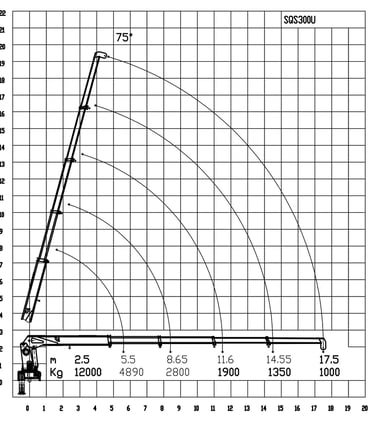

Schematic diagram of a 12 tonne telescopic boom crane with crane jib, working radius 17.5 m, showing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS300U-5

12,000Kg

30 Ton.M

17.5 M

40 Kw

80 L/Min

28 Mpa

200 L

360°

4800 Kg

1300 MM

5600 MM

Why choose the 12 ton telescopic hydraulic truck crane ?

The 12 tonne telescopic boom truck crane is stable in performance. Its structure is similar to a pentagon and hexagon, ensuring that heavy loads will not collapse during operation. The crane has a steel plate that enhances protection and provides flexural strength.

It is equipped with a hoist, which improves operating efficiency and increases its service life. The crane has disc springs and friction brakes, which provide solid stability and reliability during lifting or moving projects. The friction brakes improve efficiency and eliminate high noise levels. This provides a more comfortable working environment. The slewing device allows the operator to manoeuvre the truck easily.
