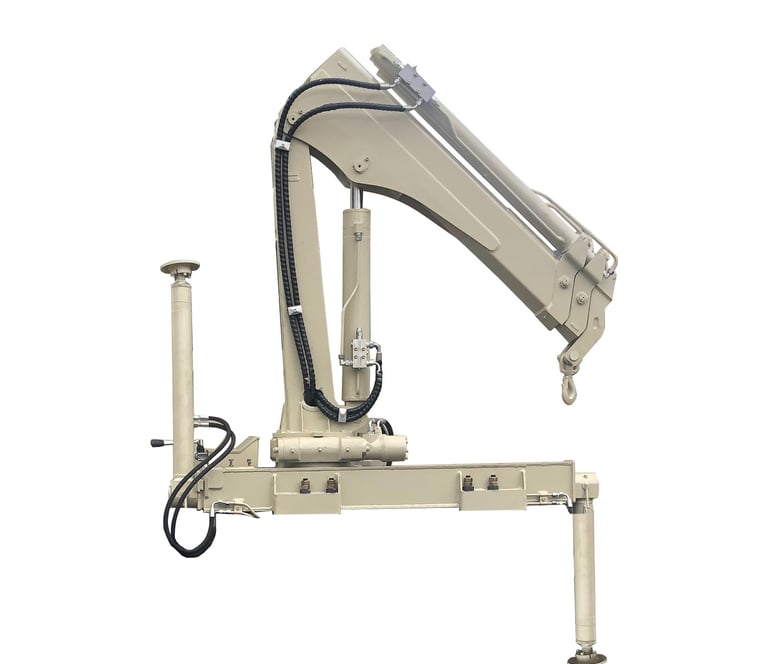

A 1-ton knuckle boom crane with a hydraulic arm and cylinder, used as a mini loader crane.

A 1-ton knuckle boom crane with a hydraulic arm and cylinder, used as a mini loader crane.

1 Ton Knuckle Boom Crane

Our best-in-class knuckle boom crane for users needing perfect accuracy is the SQZ20A-3. Maximum lift capacity of 1500 kg and a 4.2-meter reach define this crane.

DOWNLOAD BROCHURE

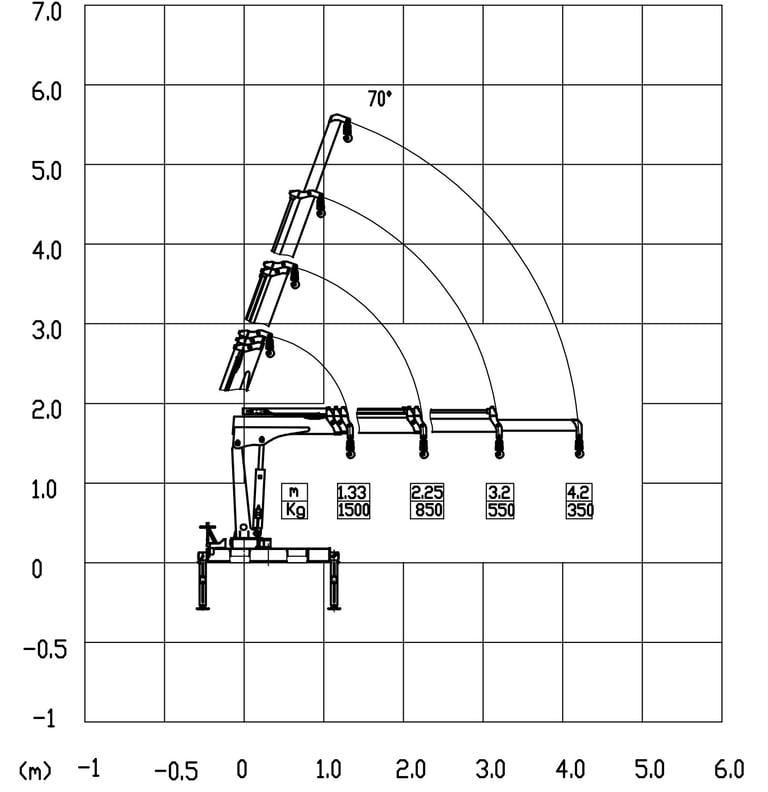

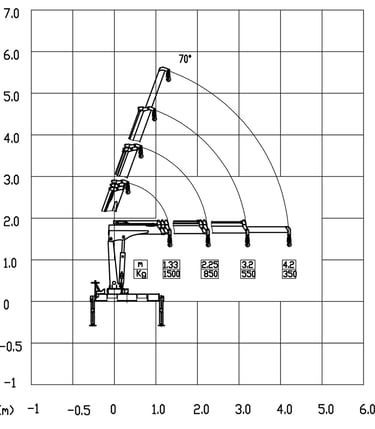

Diagram of a 1 ton knuckle boom crane with a crane arm, showcasing its parameters.

Diagram of a 1 ton knuckle boom crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQZ20A-3

1500 Kg

1.96 Ton.M

4.2 M

7.5 Kw

15 L/Min

22 Mpa

25 L

330°

534 Kg

550 MM

2530 MM

Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.

Loader crane Wireless Remote Control in red and black color scheme, equipped with four buttons.

Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.

Control panel in black and yellow with digital display designed for truck mounted crane Torque Limiter.

A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.

A specialized yellow metal cage with handle and bars, intended for lorry loader crane Working Bucket.

Truck's backside featuring steel plate and rear outriggers for crane support.

Truck's backside featuring steel plate and rear outriggers for crane support.

A black metal pliers with a handle, used as a truck-mounted crane Gripper.

A black metal pliers with a handle, used as a truck-mounted crane Gripper.

Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.

Red and black excavator with red bucket, mounted crane equipped with shell gripper for lifting sand.

OPTIONALLY INSTALLED

Wireless Remote Control

Torque Limiter

Working Bucket

Rear Outriggers

Shell Grab

Gripper

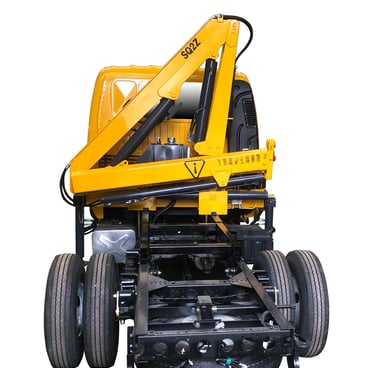

Yellow truck with 2 Ton Knuckle Boom Crane attached, capable of lifting 2,000 kg with a 5.1-meter reach.

Yellow truck with 2 Ton Knuckle Boom Crane attached, capable of lifting 2,000 kg with a 5.1-meter reach.

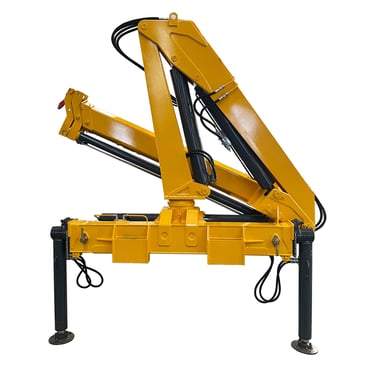

Hydraulic arm on top of yellow crane, 4 ton knuckle boom.

Hydraulic arm on top of yellow crane, 4 ton knuckle boom.

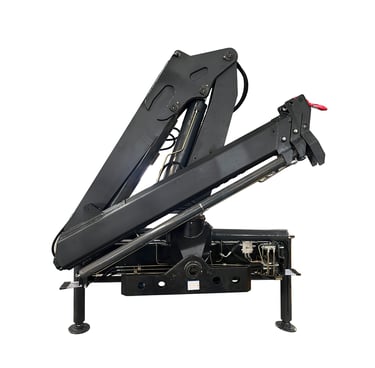

A black hydraulic lift on a white background. 4 Ton Knuckle Boom Crane, SQZ84A-2, with a 4000 kg lift capacity and 7.5-meter

A black hydraulic lift on a white background. 4 Ton Knuckle Boom Crane, SQZ84A-2, with a 4000 kg lift capacity and 7.5-meter

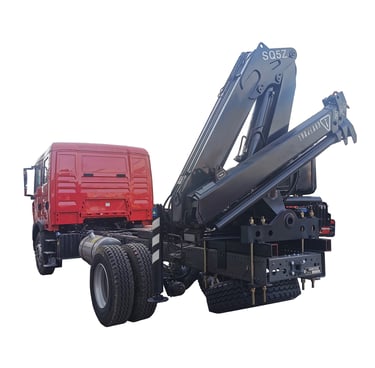

Image of a 5-ton knuckle boom truck mounted crane with a 10.5-ton lifting moment and 28 Mpa hydraulic pressure.
